Molded Grating

Leihong molded grating is a unified structure combining vinyl resin and continuous fiberglass roving, also called molded fiberglass grating, industrial grating. As a bi-directionally strong product, it allows openings for piping or cables in the grating of up to 10 inches without any additional support required. During the molded manufacturing process, the continuous fiberglass rovings are completely covered in a high percentage of resin, 65% by volume. With this high resin content, molded grating is one of the most chemically resistant gratings and are often used in caustic chemical environments without hesitation.

• Fire Retardant - ASTM E84, Class 1, F.S. 25 or less
• Bi-directional strength - Most cutouts require no additional support
• Service life more than 20 years
• Super high level of corrosion resistance
• Low maintenance
• High impact resistance

Molded Gratings are commonly used in a variety of applications, including, but not limited to:

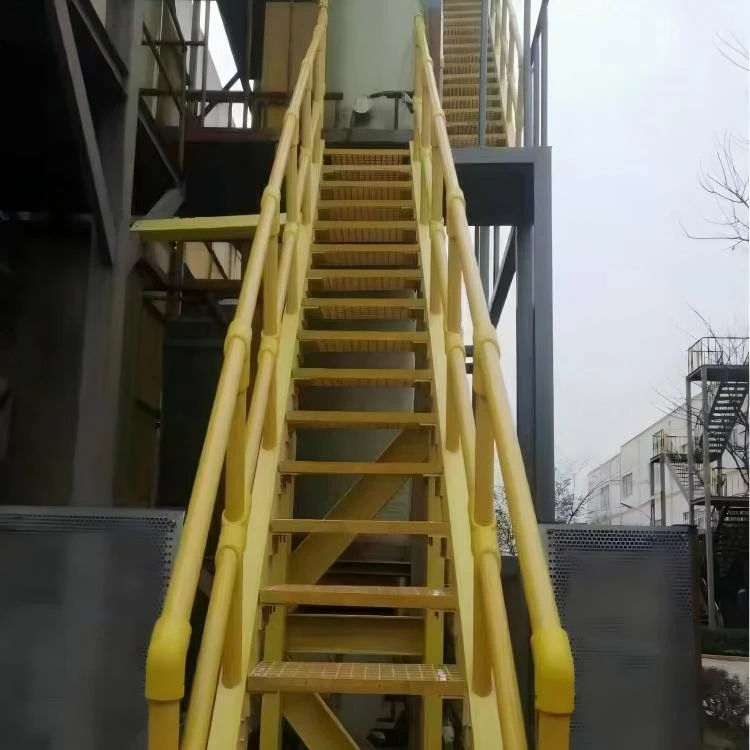

• Fiberglass grading stairs

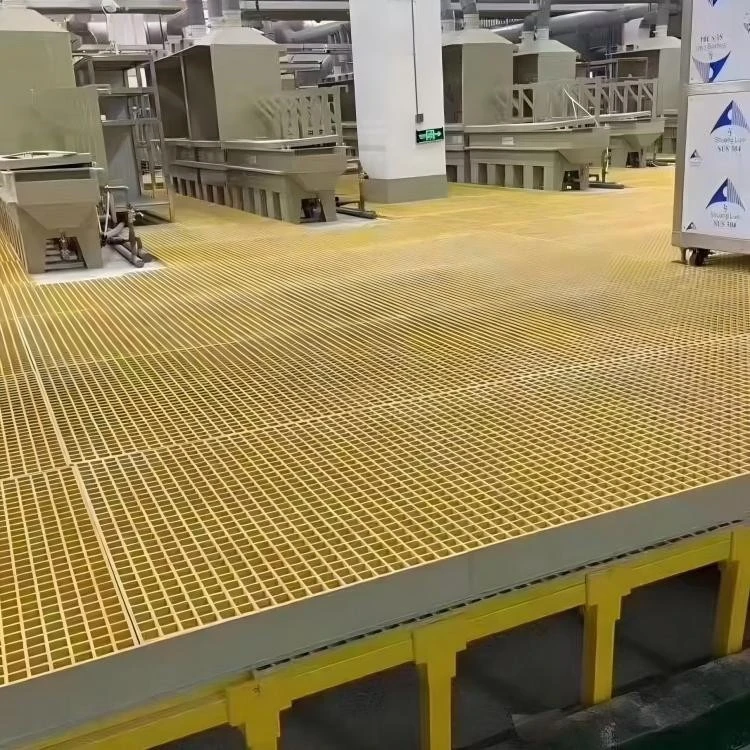

• Grate flooring
• Plating Lines
• Food Processing
• Chemical Storage
• Containment Areas

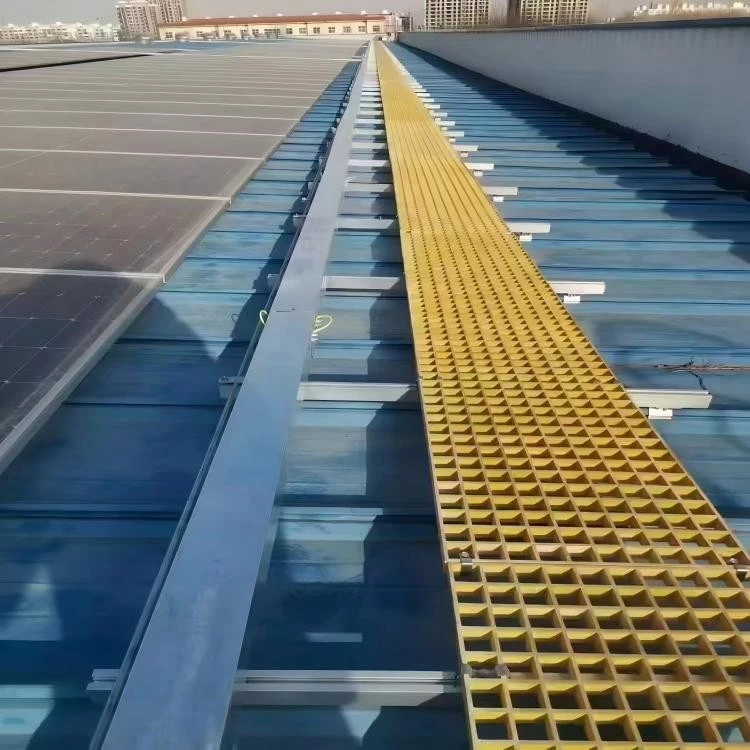

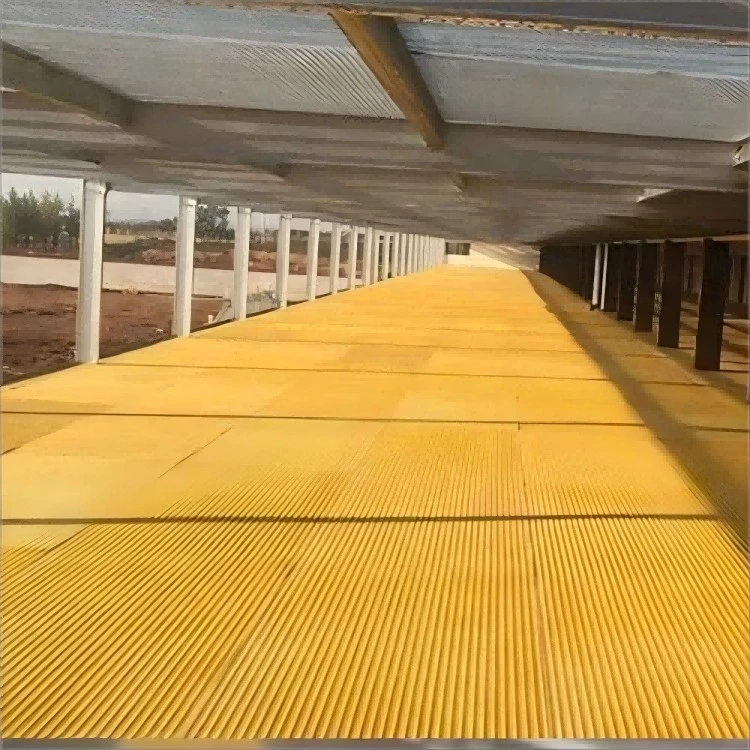

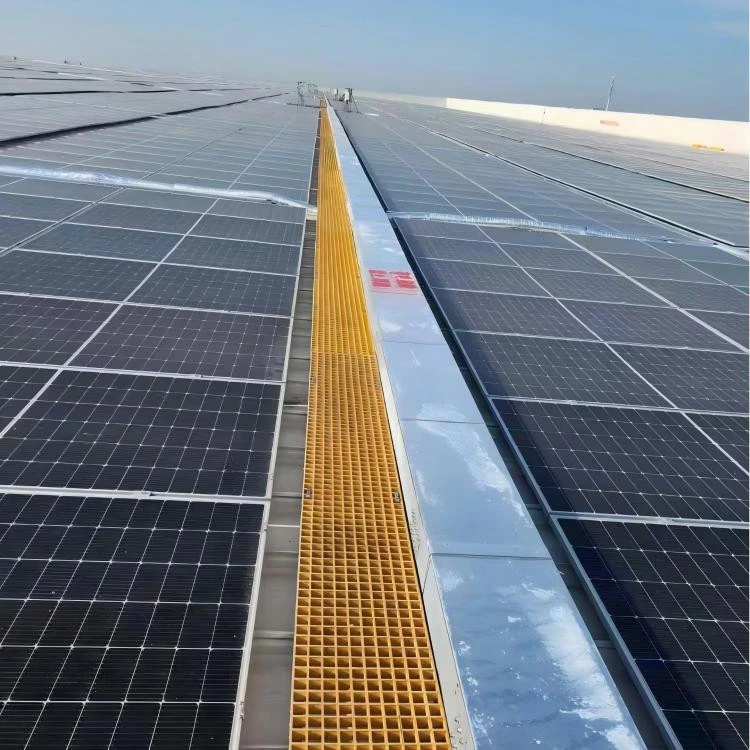

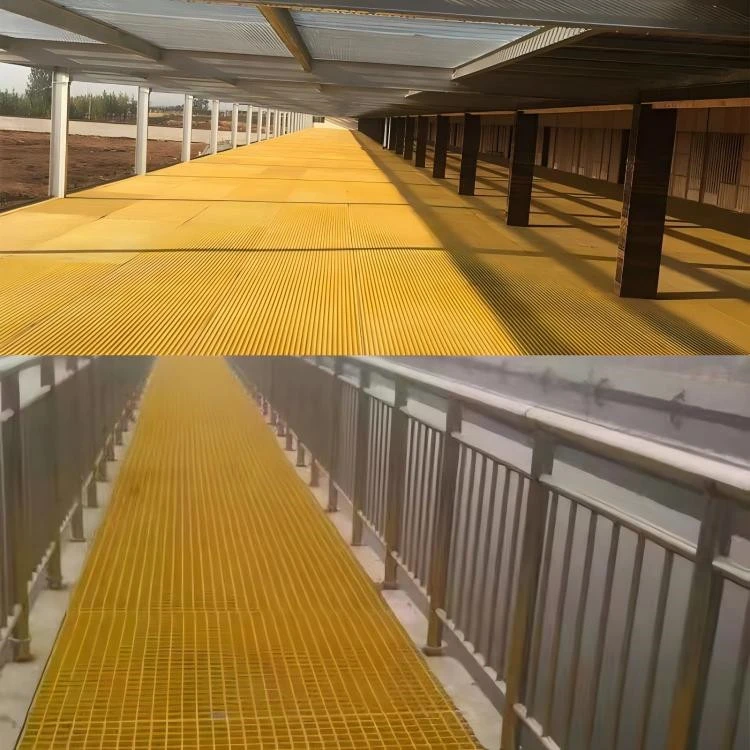

• Elevated Walkways
• Sump & Trench Covers

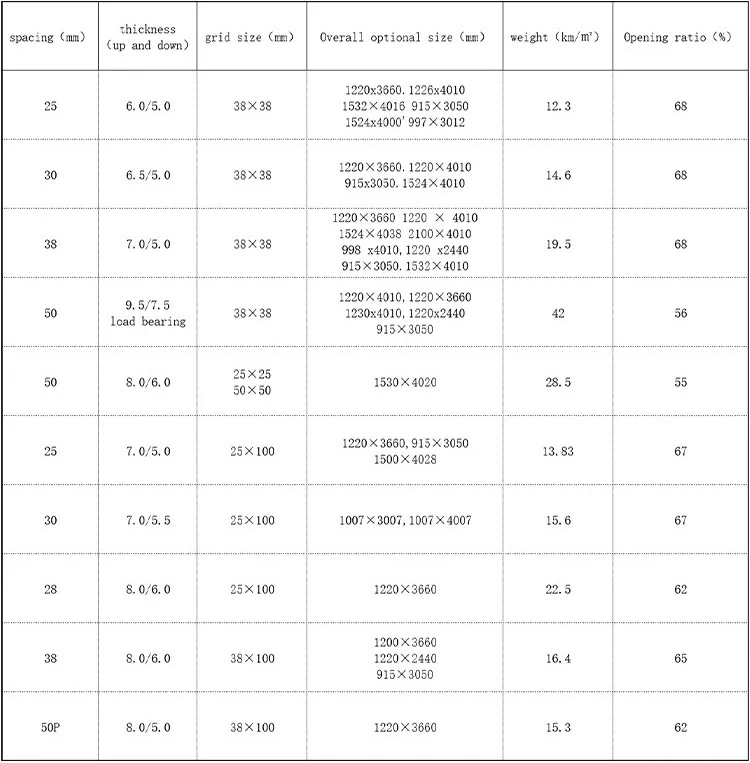

Please refer to the catalog for specific specifications and more detailed information.

As we own and operate our own factory, we are able to customise production of any colour or size, according to customer needs to achieve an aesthetically pleasing building appearance and to manufacture custom panel sizes for large repeat applications. Contact us now

1. Smooth Surface - This form is great for Bar Screens at Architectural or Wastewater Treatment plants applications.

2. Concave Surface (meniscus profile) - It is how the frp grating comes naturally out of the mold. The raised edges form a lip which offers slip resistance.

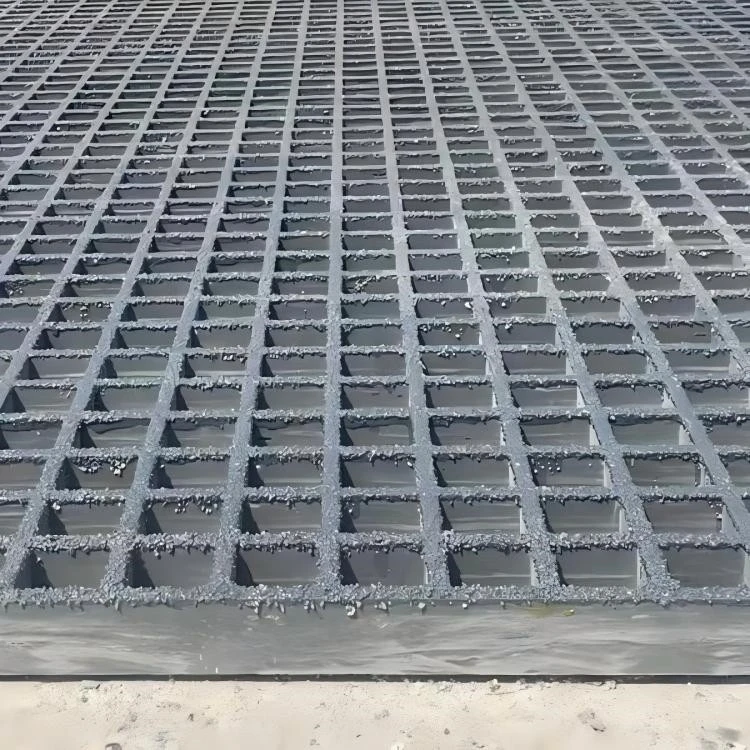

3. Grit Surface - Excellent slip-resistant surface.

(1) Standard Grit - It's the most commonly used.

(2) Aluminum Oxide Grit - Usually used in heavy industrial application.

(3) Barefoot Grit - It's perfect for Water park applications or parks where may be barefoot yet still require slip resistance.

4. Conductive Black Grit Surface - For use in high static areas. When grounded, the conductive surface allows the build-up of dangerous static electricity to be drained from the surface.
